4" Hydraulic Bump Stop

4" Hydraulic Bump Stop

£108.00 inc. vat

(£90.00 excl.vat )


Axle bending, bone jarring impacts are a thing of the past with Terrafirma Hydraulic Bump Stops fitted. The perfect solution for preventing the harsh suspension "bottoming" associated with standard rubber bump stops. With 4 inch of travel the Hydraulic Bump Stops progressively absorb the last few inches of suspension movement dramatically smoothing landings and massive bumps.

Terrafirma Hydraulic Bump Stops reduce driver fatigue and possible chassis/axle damage by controlling shock absorber travel close to full compression.

Precision engineered from 2 inch (52mm) diameter aluminium with a super tough hard chrome 32mm diameter piston rod. Classic Terrafirma blue and silver styling is retained with machined anodised fittings and a nylon contact pad keeps noise during operation to a minimum.

Mounting Terrafirma Hydraulic Bump Stops to Land Rovers is possible with specific Terrafirma mounting kits. They can be mounted with any shock absorber option and are adjustable to limit compression movement as required.

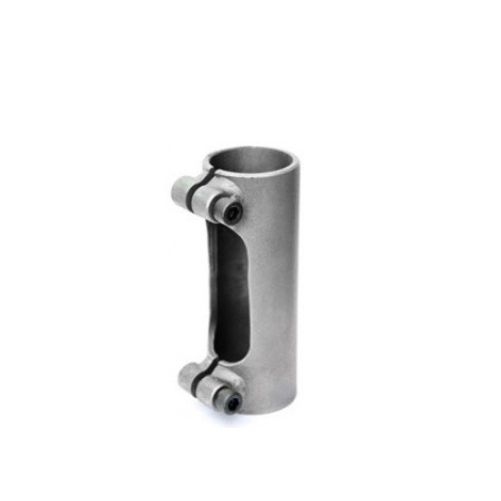

Weld on mounting tubes are also available for custom vehicle builders who wish to incorporate Hydraulic Bump Stops into their chassis design.

The Terrafirma Hydraulic Bump Stops are adjustable between 100 and 400psi and come factory set to 150psi. The length of travel and specification of the Hydraulic Bump Stops are ideally suited to Land Rover type 4x4 and similar weight applications.

  • 4" Travel
  • Zinc Plated for bright and long lasting finish
  • High pressure nitrogen charged
  • adjustable between 100 and 400psi, factory set at 150psi for immediate use

    Series II Discovery 1 Defender 90 Freelander 1 Range Rover Classic
    Series III Discovery 2 Defender 110 Freelander 2 Range Rover P38
    Discovery 3 Defender 130 Range Rover L322
    Discovery 4 2020 Defender 90 Range Rover Sport
    Discovery 5 2020 Defender 110 Range Rover Evoque
      Discovery Sport     Range Rover L405
    • Product Code:2020-FD
    • MPN:TF140
